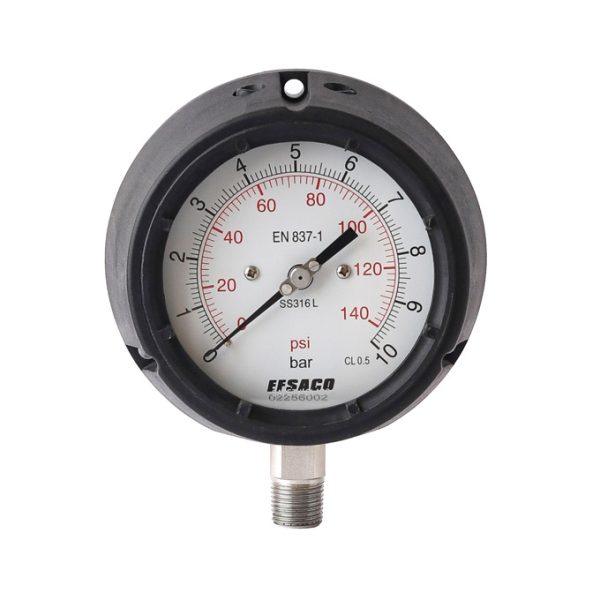

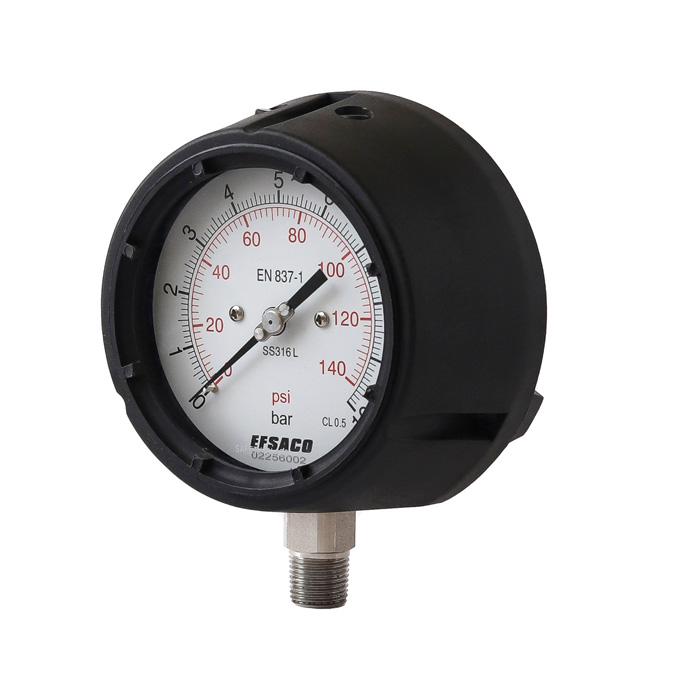

Dial size: 125 mm

Solid Front

Case filling: With (glycerin oil, silicone oil), Without

Unit scale: bar, psi, kPa, MPa, kg/cm2 (Dual or Single unit)

Process connections: 1/4″ NPTM, 1/2″ NPTM

Connection location: Bottom connection, Lower back connection

Mounting: Without (Direct mounting), Front flange (Panel mounting), Back flange (Surface mounting)

All wetted parts material: S.S 316, S.S 316 L, Monel, Bronze

Special design features: Fluctuating pressure, Vacuum, Combined (Vacuum + Pressure), Vibrations

Ingress protection: IP55, IP65, IP67
